What Are The Key Components of a Water Pump?

Zack Woo

What Are The Key Components of a Water Pump? Image 1

The key components of a water pump in pump systems are the impeller, shaft, housing, seals, couplings, suction and discharge nozzles, and the check valve.


A water pump's performance is influenced by many factors, necessitating a thorough understanding of each component.


The water pump impeller and shaft are central to the pump’s ability to move water, while the housing provides structural support.


Seals and couplings ensure leak-free operation, and the suction and discharge nozzles facilitate the flow of water.


Additionally, the check valve prevents backflow, safeguarding the system. Each of these elements works in concert to ensure that water pumps function reliably under varying conditions.


Various types of water pumps include centrifugal pump, submersible pumps, and positive displacement pumps.


What Are The Key Components of a Water Pump? Image 2

What are the 7 major parts of a water pump?

The 7 major parts of a water pump in pump systems are the impeller, shaft, housing, seals, couplings, suction and discharge nozzles, and the check valve.


The impeller serves as the heart of the pump, driving the water through the system. The shaft transmits the mechanical energy to the impeller, while the housing encases and protects these vital components.


Seals prevent leakage and ensure the efficiency of the pump, whereas couplings connect the pump to external systems.


The suction and discharge nozzles facilitate the entry and exit of water, and the check valve ensures unidirectional flow, preventing backflow that could damage the system.


A strainer might also be employed to filter out debris, safeguarding the pump and maintaining optimal operation.


What Are The Key Components of a Water Pump? Image 3

What are the body parts of a water pump?

The body parts of a water pump include components such as the housing, impeller, shaft, bearing, seal, and gasket.


The housing serves as the outer shell that encases all the internal pump parts, providing structural stability and protection.


The impeller, a rotating component, is responsible for moving water through the pump by converting rotational energy into water flow.


The shaft connects the impeller to the water pump motor, allowing energy transfer necessary for the impeller's motion.


Bearings are used to support the shaft, ensuring smooth rotation and reducing friction, which is vital for the longevity of the pump.


What Are The Key Components of a Water Pump? Image 4

Seals prevent water from leaking out of the pump housing, maintaining both the efficiency and the integrity of the pump.


Gaskets ensure tight connections between the pump components, preventing leaks and maintaining pressure.


In addition to these core parts, water pumps may have various accessories such as strainers, pressure switches, and foot valves, which enhance the pump’s functionality and adaptability to different applications.


Understanding these pump parts is essential for anyone looking to maintain or repair pumps effectively.


What Are The Key Components of a Water Pump? Image 5

What are the parts of a pump and their functions?

Pumps typically consist of three main parts: a housing, an impeller, and a motor. The housing is the pump's mainframe, which supports the impeller and contains the pumped fluid.


The impeller is a rotating set of blades that helps move the fluid through the pump. An integral part of the pump system, the motor provides the necessary power to drive the impeller.


The seal, another essential component, plays a crucial role in preventing leakage and maintaining the integrity of the system.


The pump shaft, often supported by roller bearing for water pump, connects the motor pump to the impeller, ensuring efficient transfer of power.


Pumps often include valves, such as check valves, to control the flow rate and direction of the fluid. The entire system works together to create suction that moves the fluid, enhancing the pump’s overall efficiency and effectiveness.


What Are The Key Components of a Water Pump? Image 6

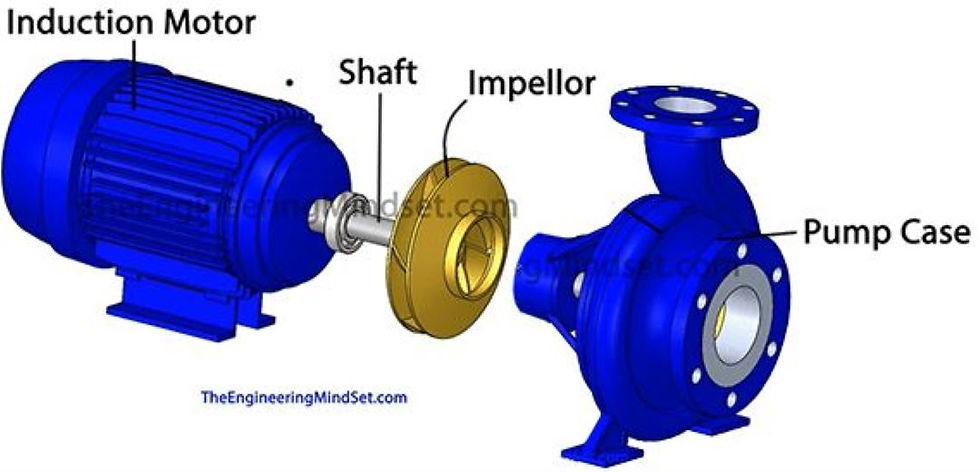

What is in a water pump?: Centrifugal Pump Parts Diagram

In a water pump, the pump parts include various critical components such as impeller, shaft, bearings, pump housing, seals, suction and discharges valves that work together to induce flow and ensure the pump is pumping water.


Centrifugal pumps typically comprise different parts such as the impeller, shaft, bearings, seal, and housing.


The impeller design is paramount as it facilitates the movement of fluid by converting rotational kinetic energy into the hydrodynamic energy of the fluid flow.


The bare shaft pump connects the motor to the impeller and is supported by bearings to minimize friction and wear.


In a centrifugal pump, high quality materials are often used for these components to enhance durability and efficiency.


The centrifugal pump system includes suction and discharge valves to regulate the flow of fluid. The housing encloses all internal parts and provides structural integrity.


The seal prevents leaks, ensuring fluid remains within the system. The engine, whether electric or gas-powered, drives the entire mechanism.


Each component plays a crucial role in making sure the centrifugal pump operates effectively in pumping water, maintaining system pressure, and inducing flow for various applications.


What Are The Key Components of a Water Pump? Image 7

What are the main components of a pump?: All about Centrifugal Pumps and Submersible Pumps

The main components of a pump are crucial to its functionality and efficiency. The main components of a centrifugal pump include the impeller, casing, shaft, mechanical seals, lip seals, ball bearings, and roller bearings. The main components of a submersible pump include the sealed motor, O-rings, check valves, and pressure relief valves.


In centrifugal pumps, the impeller rotates within the casing, creating centrifugal force that induces flow within the pump system.


The shaft, connected to the motor, transmits power to the impeller, driving the pumping action. Mechanical seals and lip seals are used to prevent leakage and ensure that the pumped materials remain within the system.


Ball bearings and roller bearings support the rotating shaft, reducing friction and wear on the moving parts.


It is important to note that the centrifugal pump is extremely prone to pump cavitation. What is pump cavitation and how do I avoid it?


Submersible pumps share many components with centrifugal pumps but are designed to operate underwater.


The motor in submersible pumps is sealed to prevent water ingress, which can be critical for the pump's durability and effectiveness.


O-rings and other sealing mechanisms are integral parts of both pump types, ensuring the components of pump remain airtight and watertight.


Check valves and relief valves are crucial as well; the check valve prevents backflow, while the pressure relief valve helps to prevent damage if the pressure exceeds safe limits.


The combination of these pump and motor components ensures efficient and reliable pumping of water and other fluids, even containing solid particles.


What Are The Key Components of a Water Pump? Image 8

Pump Components: What are the parts of a water pump?

The parts of a water pump include various key components such as bearings, impeller, pump casing/ housing, rotating shaft, seals, priming mechanism, pressure control and monitoring devices that work together to ensure efficient pumping of the fluid.


The bearings, which support the rotating shaft, and the suction side where the fluid is initially drawn into the pump.


The impeller is crucial for moving the fluid, while the casing and housing provide the structural framework.


The shaft connects the impeller to the power source, often an engine, transmitting mechanical energy.


Seals prevent leaks, and the priming mechanism ensures the pump is ready to function. Pressure control and monitoring devices, along with gauges, help regulate and observe the system's performance.


Flow rate is influenced by the design of blades within the impeller. Valves control fluid direction and prevent backflow.


Overall, the efficient operation of a water pump relies on these different parts working in harmony to maintain system integrity and function over the long run.


When a pump fails, it can lead to significant disruptions in fluid flow, potential damage to the system components, and costly downtime for pump repairs. Check out what are the symptoms and signs of a bad water pump and what are the common water pump problems and solutions.


What Are The Key Components of a Water Pump? Image 9

What two major components are contained in a water pump kit?

In a water pump kit, the two major components contained are the impeller and the pump casing.


The impeller, a rotating component, plays an essential role in the pumping mechanism by creating flow and pressure for the movement of liquids.


The water pump casing, which serves as the housing for the impeller, is typically located in the center of the water pump.


This casing not only directs the flow but also helps to protect other crucial components such as bearings and seals.


The mechanical seal pump, another vital component, ensure that no leakage occurs, maintaining the efficiency and functionality of the water pump.


If leakage still persists, you need to schedule for pump maintenance a consider a pump replacement completely. Understand what are the benefits of routine maintenance for pumps and when is it time to upgrade a water pump here.


What Are The Key Components of a Water Pump? Image 10

What are the main points of a water pump?

The main points of a water pump are essential to understand its purpose, components, types, efficiency, maintenance, and applications.


A water pump's primary purpose is to move fluids, such as water, from one location to another, typically doing so by converting mechanical energy into fluid energy.


The key components of a water pump include the housing, impellers, seals, valves, and various different water pump parts, all working harmoniously to ensure smooth operation.


The housing or casing encloses the pump, while impellers equipped with blades rotate to create velocity and pressure, thereby driving the flow of liquids.


Seals prevent leaks and maintain the integrity of the pumping system, and valves control the direction and pressure of the fluid.


Water pumps come in many different types, including centrifugal pumps, submersible pumps, and positive displacement pumps, each designed for specific applications and operating conditions. Read this easy article to understand what are the different types of pumps in Singapore and where are water pumps commonly used in industrial settings.


Centrifugal pumps, which increase fluid velocity using rotational energy, are commonly used for their simplicity and efficiency.


Submersible pumps operate underwater, making them ideal for wells and dewatering applications.


Positive displacement pumps, which move a fixed volume of fluid per cycle, are crucial for precise flow control and high-pressure applications.


Efficiency in water pumps is influenced by the design of the moving parts, quality of materials, and maintenance practices.


Regular maintenance, such as inspecting seals and impellers, ensuring proper lubrication, and monitoring for wear and tear, is critical to extend the lifespan and maintain the efficiency of the pump.


Water pumps play a crucial role in various applications, including domestic water supply, agricultural irrigation, industrial processes, and controlling fluids in HVAC systems.


They are also integral to pump systems, construction sites, firefighting systems, sewage treatment, and automotive engines. By understanding the function and components of water pumps, one can appreciate their indispensable role in modern infrastructure and daily life.
